Other Name: Aluminum Framed Glass Fence
Model: RAG201
Baluster Shape:Square Frame
Material:aluminum
Installation method: Floor Mounted
Fence: Glass panel
Application range:Balcony,Deck, Terrace, Porch, Staircase etc,.

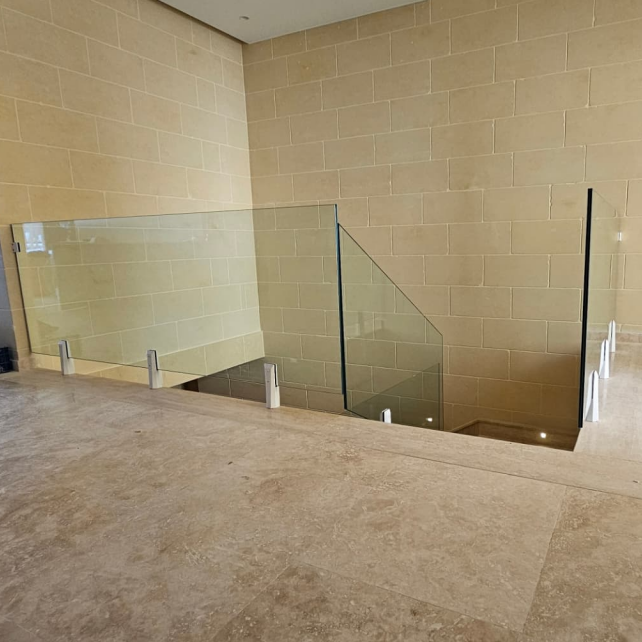

WilliamArchi aluminum glass railing systems are use high quality aluminum frame to fixing the glass fence. This system is popular near sea or mountain place when people building a commerical or residential building project there.
This system are normally use a two post or a frame with slot for glass fit. so the whole pc of glass panel will like a window on floor or side mounted on terrace.
| Post Installation Type: | On Floor, Side Mounting |
| Post or frame parts: | Made by aluminum alloy with slot. |
| Aluminum Post Base cover: | Customize |
| Fastener: | Use rubber into slot to hold it. |
| LED Light Info: | ø1-1/2″ or ø2″ with 3000K or 4000K LED, Medium or High intensity, Clear or Frosted lens |
| LED Light Application: | Balcony, terrace, floor, indoor, ourdoor both Ok |
| Surface Treatment: | powder coating, oxidation, electroplating, |
| Package: | pp bag with paper box, packed into plywood box |
Aluminum framed glass panels with a singl glass thickness of 10mm(3/8”), 12mm(1/2”), 15mm(9/16”) and laminated glass thickness of 10.76mm,13.52mm, 17.52mm, 21.52mm. Tempered safety glass with AS/NZS 2208, CE and SGCC certification.
| Glass Type: | float glass, tempered glass, laminated Glass, art glass, |
| Float Glass Thickness: | 12mm, 15mm,19mm,25mm, |
| Sign Tempered Glass Thickness: | 10mm, 12mm, 15mm, |
| Laminated Glass Thickness: | 5+5mm, 6+6mm, 8+8mm, 10+10mm |
| Surface Option: | frosted, sandblasting, non |
| Color: | Clear,tinted, blue, grey, brown, red, light black, |
| Package: | plywood carton with protection |
| Installation Type: | On-top, Side mounted, |
| Shape Availble: | round, square, tube-bar |
| Materails Availble: | Normally will use aluminum, wood, PVC |
| Round Size: | Dia 42.4/50.8/60mm |
| square Size: | /40*40/50*50/60*60mm |
| Surface Treatment: | powder coating, electroplating, printing |
| Package: | pp bag with plywood box. |
Easy Installation- no holes required for glass panels, you can fix the glass firmly on the panel by rotating screws included.The clamp will grap and extrusion the glass to make fence fix.
