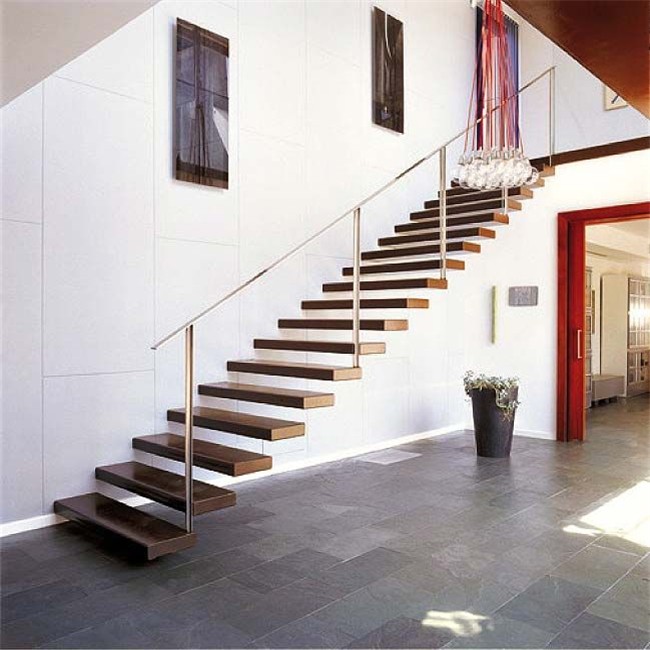

Wood cantilever staircase

Wood cantilever staircase china factory customize stair

WilliamArchi create an amazing elegant, modern,high quality cantilever staircase.You can customize suspension staircase according to your requirement for your building project with my professional floating stair manufacturer. Please see details information of option parts of floating staircase for your reference.

Santilever staircase Information
WilliamArchi have our own style and design workforce, technical crew, QC workforce. My workers are experienced in customize floating staircase production. My business activities and processes are engineered to make sure my customers have suitable solutions.
Height of floating staircase based on your job site.
The staircase width normally is between 600mm to 1080mm(24“ to 42"). Or customize.
Dimensions will vary according to measurements of stairs.
Floating staircase consists of invisible stringer beam, treads, stair fence, handrails.

Features of cantilever staircase

A wide range of choices: there are a variety of materials available for custom floating stairs. Commonly used materials are metal, wood, glass, stone and composite materials.
Building codes: Some homeowners believe that suspension floating stairs may not be an ideal choice because they may not comply with the specified building codes. The stairs customized by williamarchi will be made according to the local building regulations.
Easier to assemble stairs: Another major advantage of floating stairs is that they can be assembled more easily. Different from the traditional stairs, suspension stairs are composed of temporary treads, which can be installed at the required position for easy access, while the rest of the construction can be carried out at the same time.

Invisible Beam or Floating Staircase Beam
Normally use metal plate as stringer. The floating staircase stringer normally hidden into wall or fascia mounted on wall.

Stringer/Beam Model:	single plate / box beam.
Materail:	carben steel,304ss, 316ss,316Lss
Single Plate Beam Size:	400*12mm
Box Beam:	350*10mm+ 350*10mm + two pcs 100mm*10 width plate for top and bottom.
Surface Treatment:	galvanized + printing for carben steel, satin or mirror finish for stainless steel.
Package:	pp bag or plywood box.

Double Stringer Straight Staircase Tread
Customers can choose customize floating stairs steps according to your favorite style.

Tread Type:	wooden, glass, stone, carben steel, stainless steel  304/316/316L  available.
Tread Width:	Based on staircase width. Designed by WilliamArchi.
Wood Tread:	Thicknee(plate: 30/40/50mm. box : 82mm or 92mm). Printing surface
Glass Tread:	12+1.52+12mm or 10+1.52+10+1.52+10mm laminated tempered glass
Stone Tread	Thickness: 20mm, 30mm.  Surface:anti-slip slot.
Carben Steel Tread:	Thickness: 4mm, 5mm, 6mm. Surface: anti-slip pattern, hollow frame
Stainless Steel Tread:	Thickness: 4mm, 5mm, 6mm. Surface: anti-slip pattern, hollow frame
Package:	pp bag with plywood box.

Suspension Or Floating Staircase Tread Support

Tread Support:	plate support, frame support, tube support, angle iron flange,
Material:	carben steel,304ss, 316ss,316Lss
Size:	custom made size.
Surface Treatment:	galvanized + printing for carben steel, satin or mirror finish for stainless steel.

Railing Fence For Suspension Floating Staircase
WilliamArchi can design matel glass railing, U channel glass railing, standoff glass railing, spigot glass railing, rod railing, cable railing , wrought iron fence  , aluminum glass railing on floating staircase.

Railing Fence Height:	914.4mm(36"), 1067mm(42"), 1200mm(47-1/4")
Materails Availble:	glass, carben steel , stainless steel.
Baluster Finish:	Satin/Mirror finish/Powder coated
Baluster :	Dia38mm/42mm/50mm or 40*40mm/50*50mm square post
Baluster thicnkess:	1.0mm/1.2mm/1.5mm
Standoff:	Dia38mm/42mm/50mm or 40*40mm/50*50mm square standoff
Spigot:	Dia 42mm/50mm or 40*40mm/50*50mm square spigot
Package:	pp bag with plywood box.

Railing Handrail FOR Suspension Floating Staircase

Handrail Type:	round, squre, tube-bar or rectangle steel handrail
Materails Availble:	carben steel,304ss, 316ss,316Lss,aluminum, wood, PVC
Round Size:	Dia 25/42.4/50.8/60mm.   Longth customize
Square Size:	30*30/40*40/50*50/60*60mm.  Longth customize
Tube-bar plate:	30*10/40*20/50*20/60*20mm.   Longth customize
Rectangle Steel:	25*30*2mm, 30*30*2mm.    Longth customize
Finish:	Satin or mirror for stainless steel, printing for carben steel and wood, powder coating for aluminum and carben steel.
Handrail Installation Type:	On-top, Side mount(customized)
Package:	pp bag with plywood box.

WilliamArchi Service
Williamarchi focuses on the design and manufacture of high-quality cantilever staircase hardware structure staircase products. The company develops and produces invisible beam floating stairs, customized staircase, Double Beam Straight Staircase, Mono Stringer Staircase, Floating Staircase, Curved Staircase, Spiral Stairs Staircase. We also provide a full range of stair railings, stair steps, stair handrails, stair beam and stair hardware accessories for stairs. Welcome to contact my company for buy WA-SFL1002 Floating timber stairs in the woods floating stairs.
