Aluminum U channel glass railing

China Factory Aluminum u channel glass railing Customization

WilliamArchi aluminum u channel glass railing systems are use high quality aluminum frame to fixing the glass fence. This system is popular near sea or mountain place when people building a commerical or residential building project there.

u channel glass railing Information

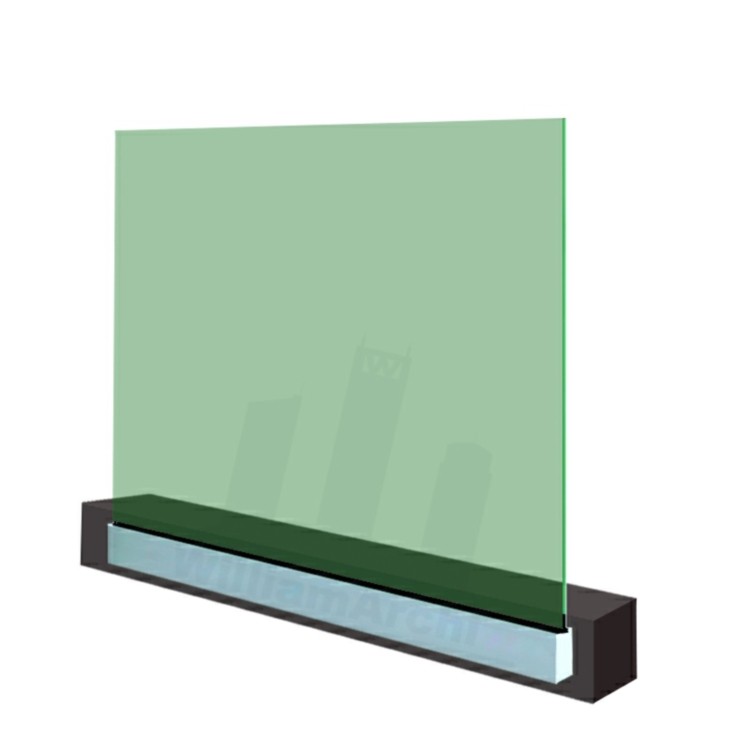

This system are normally use a aluminum U shape shoe base with slot for glass fit. so the whole piece of glass panel will like a frameless glass wall on floor or side mounted on terrace.
Size for Single Panel: Max width 1200mm(47''-1/4"), Max height 59''
Each glass panels will be installed in to U shoe base.
Led light can be put in U shoe base under glass panel.
Our U base are custom made using high quality materials,
The advantage of this product is that it has a simple and beautiful structure and can show you an excellent outside view.

u channel glass railing base option

Model frame parts:	Made by aluminum alloy base with slot mainly. Also the U base can be customize by carbon steel, 304ss, 316ss, 316L ss,
Aluminum U base size:	45*120mm, 60*140mm, 62*102mm, 66.5*135mm, 70.5*102mm, 45*210(side mount).etc.,
Stainless steel base size:	30*50*5mm, 32*60*6mm, 34*70*6mm, 36*70*8mm. etc.,
Base cover:	Customize
Fastener:	Use rubber into slot to hold it.
LED Light (option):	ø1-1/2″ or ø2″ with 3000K or 4000K LED, Medium or High intensity, Clear or Frosted lens
LED Light Application:	Balcony, terrace, floor, indoor, ourdoor both Ok
Base surface Treatment:	powder coating, oxidation, electroplating,
Installation Method:	floor mount, side mount ( fascia mount), core mount,
Package:	pp bag with paper box, packed into plywood box

U Channel Railing Glass Details
U channel glass panels with a singl glass thickness of 10mm(3/8”), 12mm(1/2”), 15mm(9/16”) and laminated glass thickness of 10.76mm,13.52mm, 17.52mm, 21.52mm. Tempered safety glass with AS/NZS 2208, CE and SGCC certification.

Glass Type Available:	tempered glass, laminated Glass,float glass,
Sign Tempered Glass Thickness:	10mm, 12mm, 15mm,
Laminated Glass Thickness:	5+5mm, 6+6mm, 8+8mm,10+10mm, 12+12mm or Customize
Float Glass Thickness:	10mm, 12mm, 15mm available
PVB Laminated Filler:	0.75mm, 1.14mm, 1.52mm, 1.9mm available
SGP Laminated Filler:	0.89mm, 1.52mm, 2.28mm available
Surface Option:	frosted, sandblasting, non
Color:	Clear,ultrawhite, tinted, blue, grey, brown, red, light black,
Glass Package:	plywood carton with protection

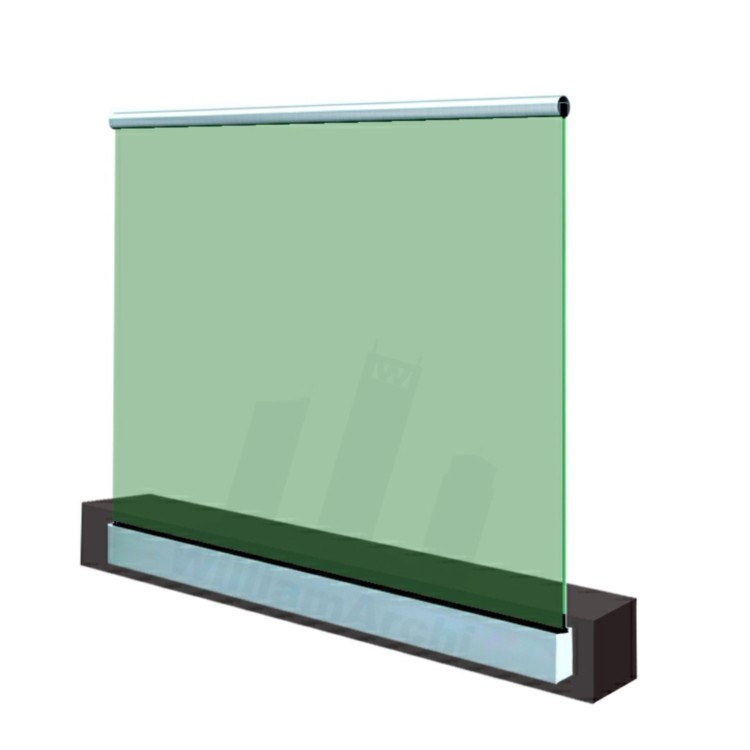

Aluminum Framed Glass Railing Handrail

Installation Type:	On-top, Side mounted,
Shape Available:	round, square, tube-bar, U shape plate,
Materails Available:	304ss, 316ss, 316Lss, carben steel, aluminum, wood, PVC
Round Size:	Dia 38/42.4/50.8/60mm
Square Size:	30*30/40*40/50*50/60*60mm
Tube-bar:	30*10/40*20/50*20/60*20mm
U shape plate:	25*30*1.5mm/25*30*2mm
Surface Treatment:	satin, mirror,powder coating, electroplating,printing(wood)
Package:	pp bag with plywood box.

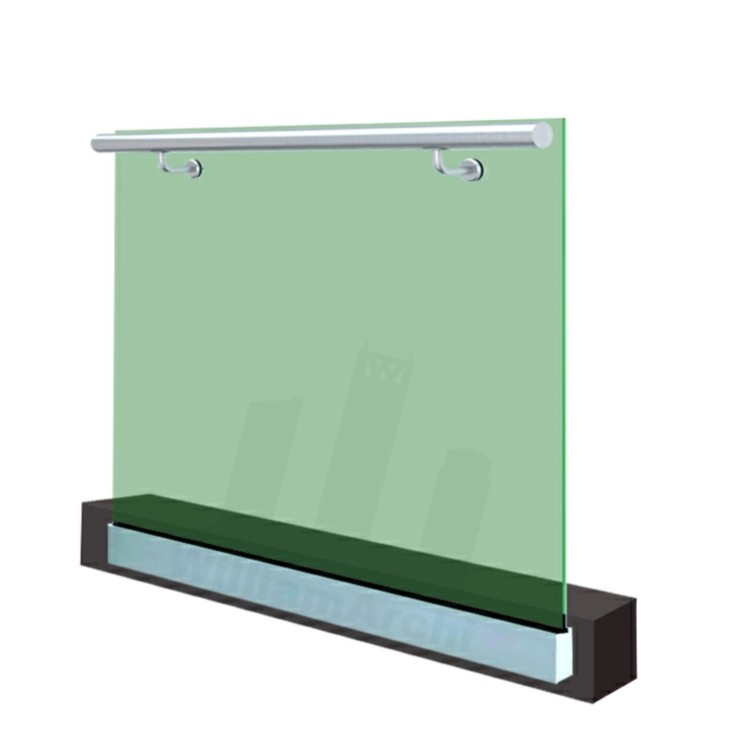

Aluminum U Channel Glass Railing Handrail Brackets
Railing brackets can be used for holding the handrail from shoe base glass railing fence. Also on wall at stairway place.

Aluminum U Channel Glass Railing Handrail Connector
Railing handrail connector is used for joint handrail together as longth limited or coner place which is not straight.

Aluminum U Channel Glass Railing Handrail End Plug
Railing handrail end plug is used at the end of the handrail, as a decorative parts to cover the ends for handrail.

Glass Clamp Options For U Channel Base Glass Railing
Glass clamp are used between to pieces of glass. This design is to reinforce railing glass panel. Also can make the railing glass alignment.

WilliamArchi is focus on high quality u channel glass railing and construction hardware design and manufacture, development and production of aluminum U channel shoe base railing fence and balustrade systems. We have full range products of railing and balustrade fittings, such as glass u base, glass clamps, handrail brackets, tube connector, top-rail tubes , shoe base cover etc. Please contact me for customize WA-RAL1004 glass u channel stainless fence.Aluminium and glass balustrades glass u channel stainless base cover banister
