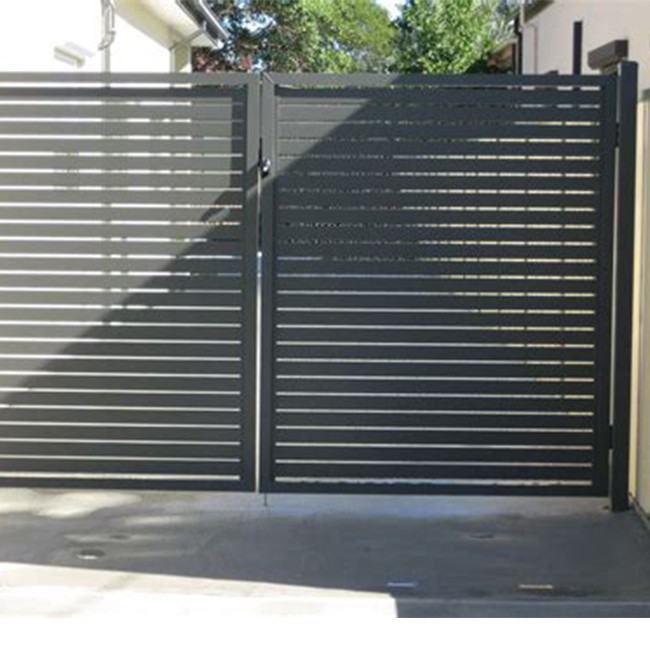

Diy aluminium slat gates

WilliamArchi aluminium slat fencing gate manufacturers provide customized horizontal slat gate products.

1 Inch Fence Slats Diy Aluminium Slat Gates Suppliers

As early as the 1970s, colored aluminum alloy guardrails have been widely used as building fences. At present, most of the aluminum alloy fence are made of 6063 industrial aluminum through extrusion, aging, soldering, high temperature electrostatic spraying, and a new process of classical buckle combination. Aluminum alloy guardrail does not need welding, wire connection and corner code connection, and its nodes are tight, seamless, safe and reliable, full of beautiful, fashionable, rust free, green and environmentally friendly good quality with long life.

The following are the advantages of aluminum slat guardrails.
1. The production and installation are simple and fast. The patented plug-in connection is used to greatly improve the installation efficiency.
2. There are many varieties and specifications, and you can choose a variety of shapes. It has both European and American styles and current fashion, showing a noble and modern aesthetic feeling.
3. It is safe, environmentally friendly and harmless to people (animals). Even if you unintentionally touch the guardrail, you will not hurt people like steel or iron guardrails.
4. Guardrail has sufficient strength and impact resistance.
5. With special spraying or oxidation, the aluminum alloy guardrail is UV resistant, non fading, non yellowing, non peeling, non cracking, non foaming, and non moth eaten. The service life of aluminum alloy guardrail can reach more than 60 years.

Diy aluminium slat gates technical parameter
Design standards for indoor and outdoor platforms, stairs and ramp guardrails
1.1 Height of platform guardrail (from the upper plane of the handrail to the ground): 900mm-1200mm;
1.2 Vertical spacing of guardrail posts ≤ 1200mm, vertical spacing of glass guardrail posts ≤ 1000mm;
1.3. Vertical spacing of guardrail posts ≤ 110mm;
1.4 Balance distance between handrail and upper crossbar ≤ 110mm, balance distance between lower crossbar and ground ≤ 110mm;
1.5 Requirements for pipe wall: handrail and column ≥ 1.4mm; Cross bar ≥ 1.2mm; Vertical pole ≥ 1.0mm;
1.6 Profile finish: adopt the coloring production process of Aksu outdoor powder high temperature electrostatic powder spraying or oxidation electrophoresis, and the color is designed according to the project;
1.7 Production process: classical buckle fast combination production process is adopted, without welding, wire connection and corner code connection;
1.8 Technical requirements for glass guardrail: toughened laminated safety glass with thickness of 12mm and embedded depth of 12mm shall be used, and ethylene propylene diene monomer (EPDM) tape shall be used to inlay the four sides of the glass;
1.9 Technical requirements for construction and installation: the handrail and wall facade shall be fixed with aluminum die casting internal expansion bolt, and the column and ground shall be fixed with aluminum connector internal expansion bolt.
1.10 Overall uniform load of guardrail ≥ 1000N/m;

Diy aluminium slat gates common specifications of pipes

Handrail:	100mm × 50mm × 1.2mm、95mm × 45mm × 1.4 mm、80mm × 50mm × 1.2mm、80mm × 40.5mm × 2.0 mm、70mm × 46.9mm × 1.2mm、70mm × 46.9mm × 1.4 mm、80mm × 46.9mm × 1.4 mm、69mm × 46.9mm × 1.2mm、70mm × 40mm × 1.2 mm;
Column or slat:	56.5mm × 56.5mm × 1.2 mm、60mm × 56.5mm × 1.2 mm、56.5mm × 45mm × 1.2mm、49.5mm × 49.5mm × 1.5 mm、44mm × 37.5mm × 1.5 mm;65*16*1.2mm,100*16*1.2mm,150*16*1.2mm...
Cross bar or rail:	44mm × 37.5mm × 1.5 mm、30mm × 26.9mm × 1.2mm, 40*40*2mm, 40*40*3mm; 50*50*2mm/63.5*63.5*3.2mm
Vertical pole:	25mm × 24mm × 1.0 mm、24mm × 20mm × 1.0 mm.
Post Type:	Square Shape Inground post/Flanged post
Warranty	10-15years

Diy aluminium slat gates of application: It is applicable to indoor and outdoor stairs, balconies, French windows, automatic elevator openings, glass curtain wall guardrails and cantilevers, corridors, atrium racetracks, bridges, traffic road isolation, lakeside, riverbank, roof guardrails for people, etc. of civil and industrial buildings.
