Standoff stainless steel railing

Customize standoff stainless steel railing china manufactory supplier
WilliamArchi stainless steel railing systems are suitable for commercial buildings and residential projects. It can be customized according to your local building codes to meet your building project requirements.
stainless steel railing Information

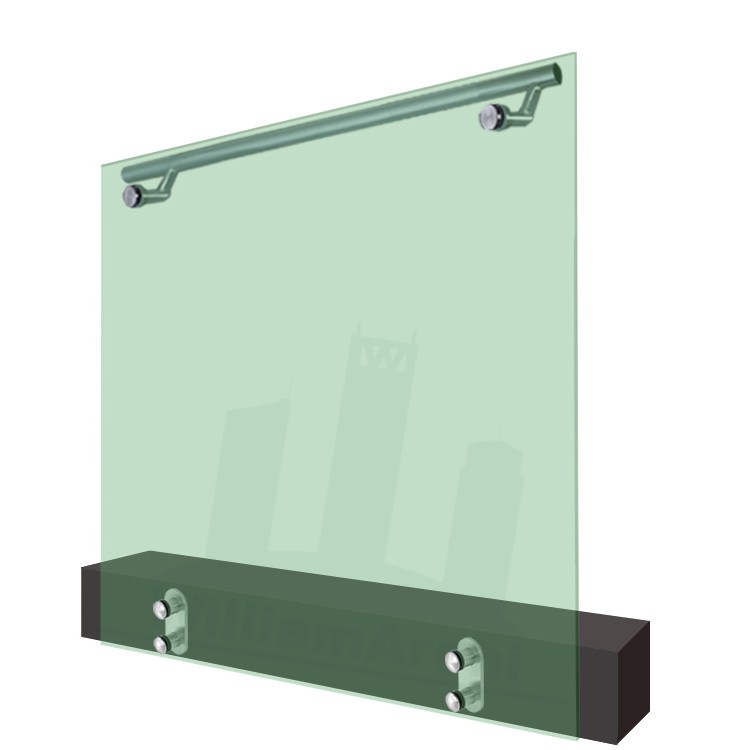

This type of railing consists of glass and metal standoff baluster.
Size for Single Panel: Max width 1200mm(47''-1/4"), Max height 59''
Each glass panels will be hold by 4 or 6 pcs of standoff baluster.
Our products are custom made using high quality materials.

The advantage of this product is that it has a simple and beautiful structure and can show you an excellent outside view.

Products Inforamtion

Railing Standoff Baluster Parts

Shape Availble:	round/square
Modol Availble:	single standoff, double/twins standoff,
Materails Availble:	carben steel, S.S304, S.S316, S.S316L
Round Size:	Dia 25/38/42.4/50.8mm. Longth 100/120/160mm with screw or bolt
square Size:	30*30/40*40/50*50mm. Longth 100/120/160mm with screw or bolt
Surface Treatment:	powder coating, satin, mirror, electroplating,
Installation Method:	side mount ( fascia mount)
Package:	pp bag with paper box.

Standoff Railing Glass Information

Glass Type:	tempered glass, laminated Glass,float glass,
Float Glass Thickness:	10mm, 12mm, 15mm,
Tempered Single Glass Thickness:	10mm, 12mm, 15mm,
Laminated Glass Thickness:	5+5mm, 6+6mm, 8+8mm,10+10mm, 12+12mm or Customize
PVB Laminated Filler:	0.75/1.14/1.52/1.90mm available
SGP Laminated Filler:	0.89/1.52mm/2.28mm available
Surface Option:	frosted, sandblasting, non
Color:	Clear,ultrawhite, tinted, blue, grey, brown, red, light black,
Package:	plywood carton with protection

Standoff Glass Railing Handrail

Installation Type:	On-top, Side mounted,
Shape Availble:	round, square, tube-bar, U shape plate,
Materails Availble:	carben steel,304ss, 316ss,316Lss,aluminum, wood, PVC
Round Size:	Dia 25/42.4/50.8/60mm
Square Size:	30*30/40*40/50*50/60*60mm
Tube-bar:	30*10/40*20/50*20/60*20mm
U shape plate:	25*30*1.5mm/25*30*2mm
Surface Treatment:	satin, mirror,powder coating, electroplating,printing(wood)
Package:	pp bag with plywood box.

Standoff Glass Railing Handrail Brackets

Railing brackets can be used for holding the handrail from standoff glass railing fence. Also on wall at stairway place.

Standoff Glass Railing Handrail Connector
Railing handrail connector is used for joint handrail together as longth limited or coner place which is not straight.

Standoff Glass Railing Handrail End Plug
Railing handrail end plug is used at the end of the handrail, as a decorative parts to cover the ends for handrail.

Glass Clamp Options For Standoff Glass Railing
Glass clamp are used between to pieces of glass. This design is to reinforce railing glass panel. Also can make the railing glass alignment.

Our Services
WilliamArchi is focus on high quality stainless steel railing design and manufacture. Development and production of stainless steel railing and balustrade systems. We have full range products of railing and balustrade fittings, such as glass spigots, glass clamps, handrail brackets, tube connector, top-rail tubes ,cable railing, steel railing price fence, glass railing system railing etc. Please contact me for Customize standoff stainless steel railing china manufactory supplier.
